引言

之前实验对比都会用到ORB-SLAM3，但当时采用的都是ROS1接口，本博文先对ROS2进行安装，然后适配ORB-SLAM3

ROS2 安装

关于ros2，网上部分教程是说ubuntu20.04，可以安装Foxy，Galactic，Humble。但实际上Humble是源码编译，其支持的应该是22.04，而Galactic则并非LTS长期支持的，为此此处安装Foxy

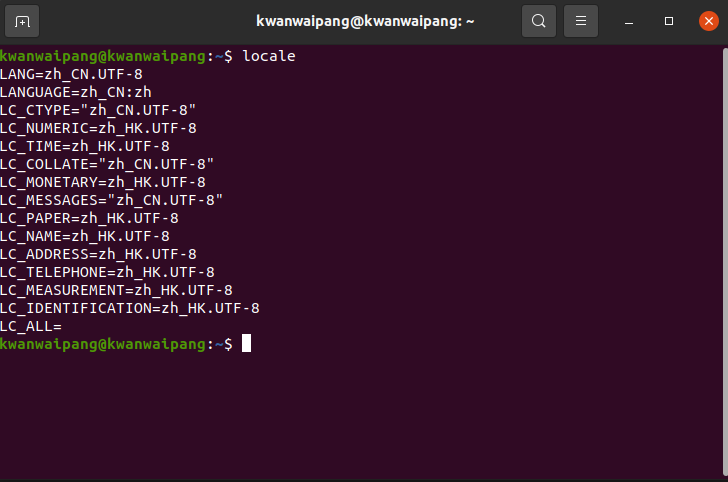

首先打开终端，检查是否支持UTF-8

locale

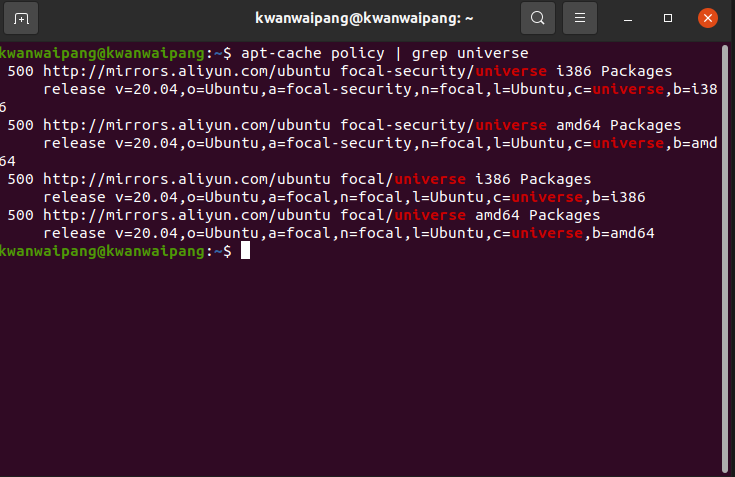

此处是支持的。然后检查是否启用ubuntu Universe存储库

apt-cache policy | grep universe
## 输出应如下：
 500 http://security.ubuntu.com/ubuntu focal-security/universe i386 Packages
     release v=20.04,o=Ubuntu,a=focal-security,n=focal,l=Ubuntu,c=universe,b=i386
 500 http://security.ubuntu.com/ubuntu focal-security/universe amd64 Packages
     release v=20.04,o=Ubuntu,a=focal-security,n=focal,l=Ubuntu,c=universe,b=amd64

然后设置密钥

sudo apt update && sudo apt install curl gnupg2 lsb-release

报错如下：

E: 仓库 “http://ppa.launchpad.net/inivation-ppa/inivation-bionic/ubuntu focal Release” 没有 Release 文件。
N: 无法安全地用该源进行更新，所以默认禁用该源。
N: 参见 apt-secure(8) 手册以了解仓库创建和用户配置方面的细节。
N: 鉴于仓库 'https://packages.microsoft.com/ubuntu/20.04/prod focal InRelease' 不支持 'i386' 体系结构，跳过配置文件 'main/binary-i386/Packages' 的获取。
E: 仓库 “https://packages.microsoft.com/ubuntu/18.04/prod focal Release” 没有 Release 文件。
N: 无法安全地用该源进行更新，所以默认禁用该源。
N: 参见 apt-secure(8) 手册以了解仓库创建和用户配置方面的细节。

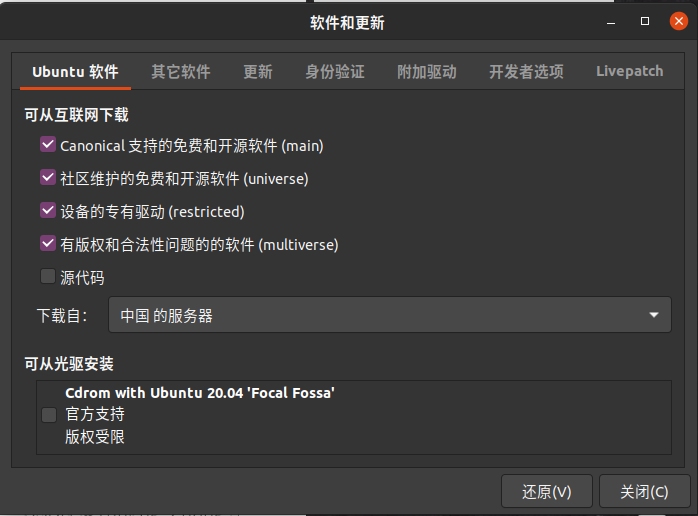

因此打算先配置系统软件源，设置如下：

然后再尝试，还是有部分源没拉成功，接下来采用方式如下：

  1. 删除错误的仓库文件：
sudo rm /etc/apt/sources.list.d/microsoft-prod.list  # 默认文件名

ls /etc/apt/sources.list.d/ | grep microsoft
sudo rm /etc/apt/sources.list.d/<匹配的文件名>

# 移除 Microsoft 18.04 仓库
sudo rm -f /etc/apt/sources.list.d/microsoft-prod.list
sudo rm -f /etc/apt/sources.list.d/msprod.list
  1. 删除 inivation-bionic PPA：
sudo add-apt-repository --remove ppa:inivation-ppa/inivation-bionic

# 移除 inivation-bionic PPA
sudo rm -f /etc/apt/sources.list.d/inivation-ppa-ubuntu-inivation-bionic-*.list
  1. 清理并更新
# 检查所有源文件
ls /etc/apt/sources.list.d/

# 清除所有缓存
sudo rm -rf /var/lib/apt/lists/*

sudo apt clean
sudo apt update

然后再次安装：

sudo apt --fix-broken install
sudo apt install curl gnupg2 lsb-release

然后执行：

sudo curl -sSL https://raw.githubusercontent.com/ros/rosdistro/master/ros.key  -o /usr/share/keyrings/ros-archive-keyring.gpg

echo "deb [arch=$(dpkg --print-architecture) signed-by=/usr/share/keyrings/ros-archive-keyring.gpg] http://packages.ros.org/ros2/ubuntu $(source /etc/os-release && echo $UBUNTU_CODENAME) main" | sudo tee /etc/apt/sources.list.d/ros2.list > /dev/null

sudo apt update
sudo apt upgrade
# 推荐桌面版，注意安装时间较长，耐心等待
sudo apt install ros-foxy-desktop

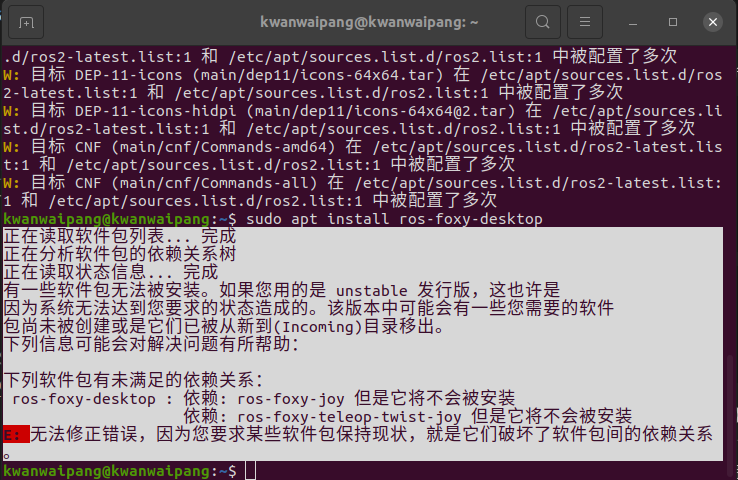

但是包错如下：

先尝试手动安装被阻止的依赖

sudo apt install ros-foxy-joy ros-foxy-teleop-twist-joy

还是不行，改为用aptitude安装

sudo apt install aptitude
sudo aptitude install ros-foxy-desktop
#开始给出的选项还是会出现无法not installed, 多点几次N, aptitude会给出一个降低软件版本的修复方案， 可以解决ros2 的依赖问题， 后面顺利安装.

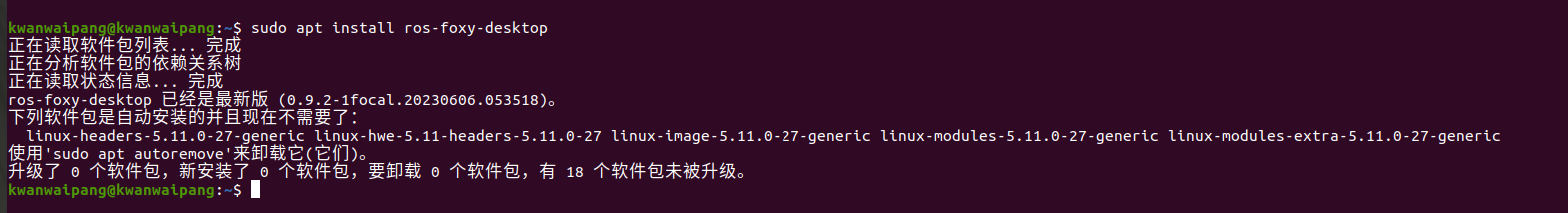

似乎成功了，接下来设置环境变量

source /opt/ros/foxy/setup.bash
#也可以写到bashrc中
echo "source /opt/ros/foxy/setup.bash" >> ~/.bashrc

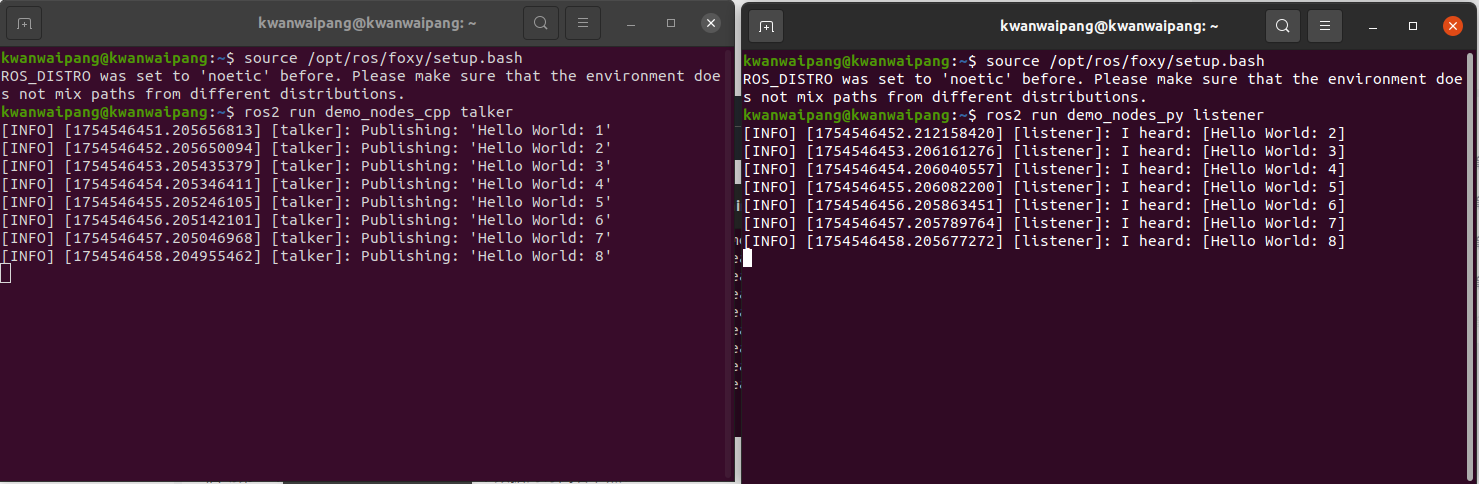

测试示例1——Hello World

source /opt/ros/foxy/setup.bash
# 启动第一个终端，通过以下命令启动一个数据的发布者节点：
ros2 run demo_nodes_cpp talker
# 启动第一个终端，通过以下命令启动一个数据的发布者节点：
ros2 run demo_nodes_py listener

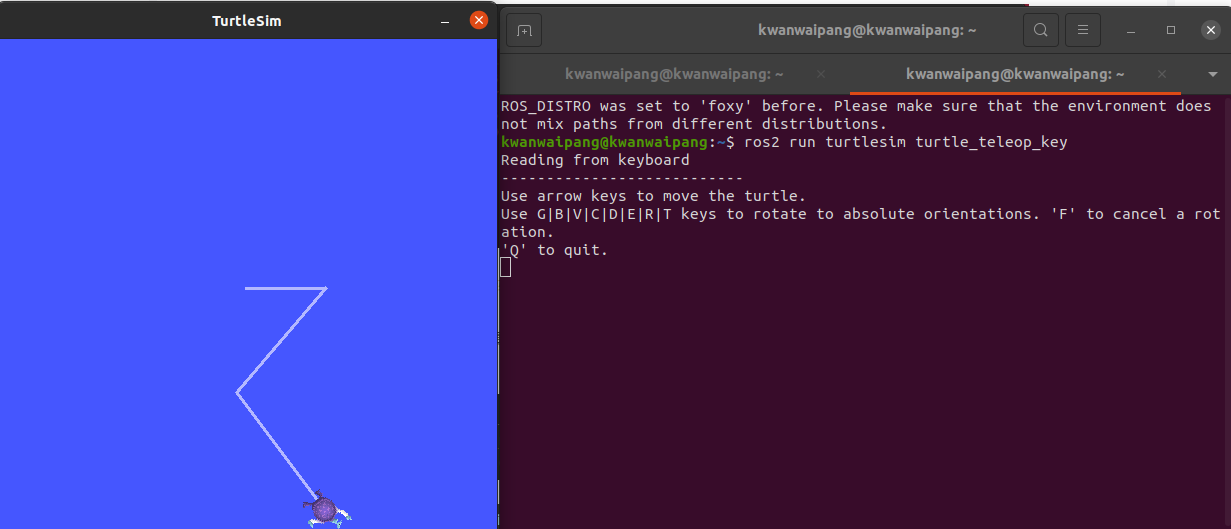

测试示例2——小海龟仿真示例

ros2 run turtlesim turtlesim_node
ros2 run turtlesim turtle_teleop_key

ORB-SLAM3的配置

电脑原本已经有ORB-SLAM3的代码了，但是为了避免之前修改过的忘记了，此处重新下载源码及编译～

下载源码

git clone https://github.com/UZ-SLAMLab/ORB_SLAM3.git ORB_SLAM3
#rm -rf .git

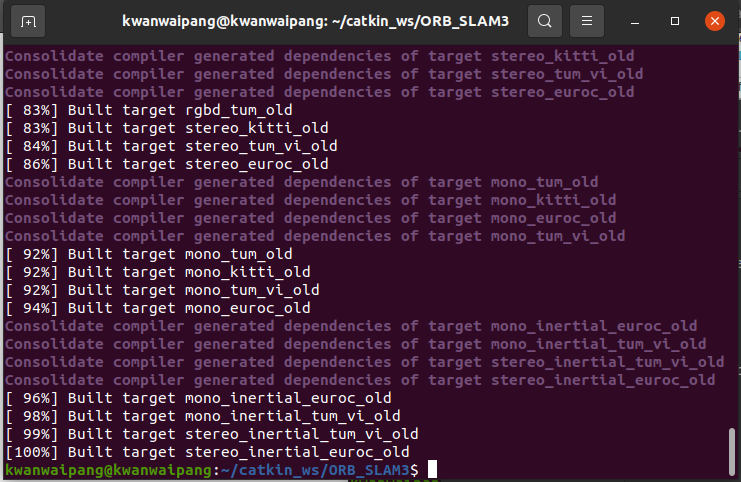

然后编译

cd ORB_SLAM3
chmod +x build.sh
./build.sh

遇到pangolin相关报错先确认是否安装好了

# 检查Pangolin头文件
ls /usr/local/include/pangolin
# 检查库文件
ls /usr/local/lib/libpangolin*

pangolin安装

# Get Pangolin
cd ~/your_fav_code_directory
git clone --recursive https://github.com/stevenlovegrove/Pangolin.git
cd Pangolin

# Install dependencies (as described above, or your preferred method)
# ./scripts/install_prerequisites.sh recommended
# Override the package manager choice and install all packages
./scripts/install_prerequisites.sh -m brew all

# Configure and build
cmake -B build
cmake --build build

cd build
sudo make install #必须

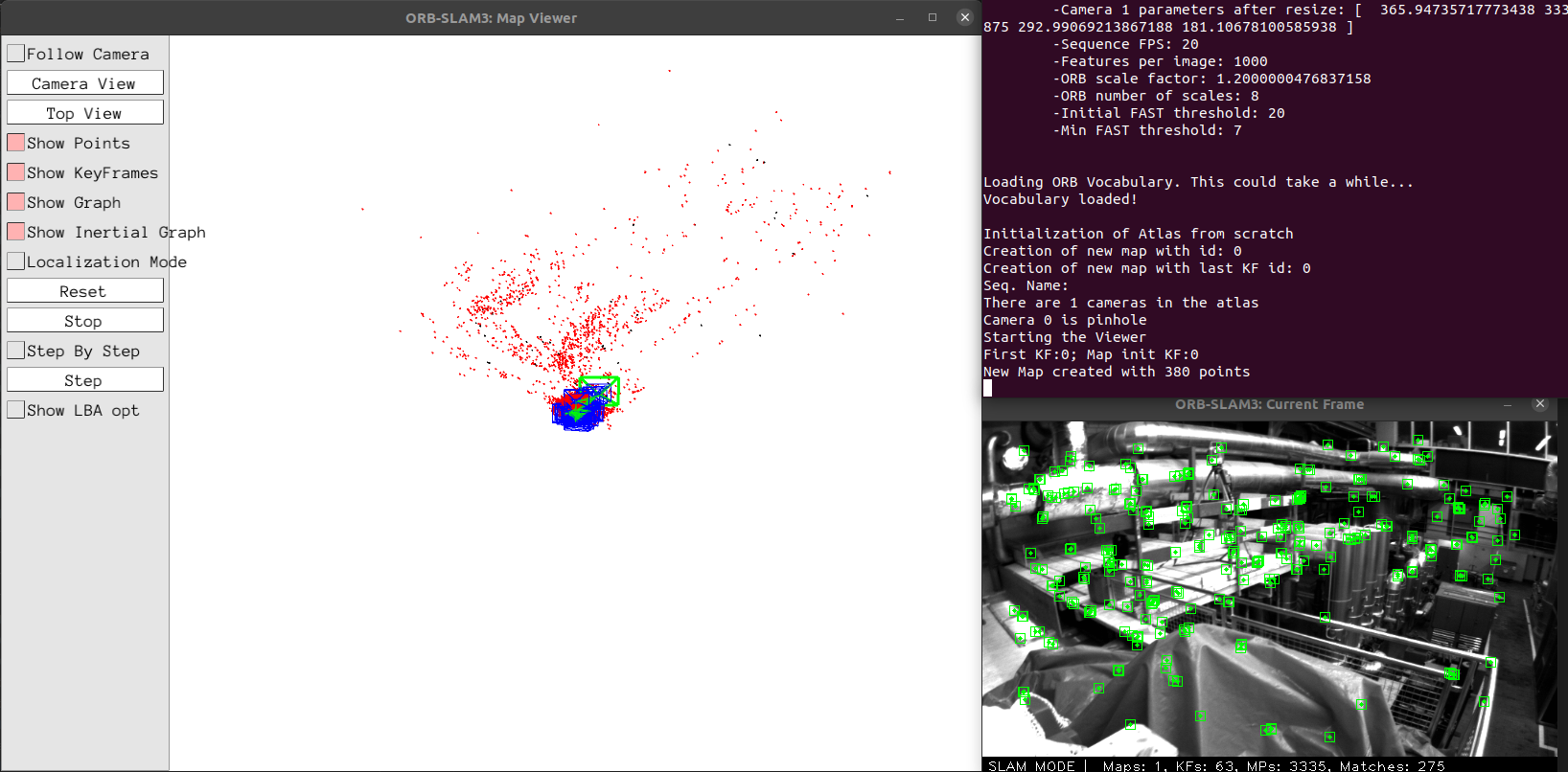

运行Euroc

  • 下载数据 (ASL format) Link
  • 然后打开文件euroc_examples来更改数据集的路径
# ./euroc_examples
./Examples/Monocular/mono_euroc ./Vocabulary/ORBvoc.txt ./Examples/Monocular/EuRoC.yaml ~/dataset/MH_01_easy ./Examples/Monocular/EuRoC_TimeStamps/MH01.txt
#注意源码是没有可视化的，要自行修改
# ORB_SLAM3::System SLAM(argv[1],argv[2],ORB_SLAM3::System::MONOCULAR, true);//开启可视化

基于ROS2的运行

  • 下载源码：
mkdir -p colcon_ws/src
cd ~/colcon_ws/src
git clone https://github.com/zang09/ORB_SLAM3_ROS2.git orbslam3_ros2
#rm -rf .git

  • 然后将次行设置为ros2的python site-packages，笔者的位置为“/opt/ros/foxy/lib/python3.8/site-packages/”

  • 再将此行设置了ORB-SLAM3的路径，此处设置为“~/catkin_ws/ORB_SLAM3”

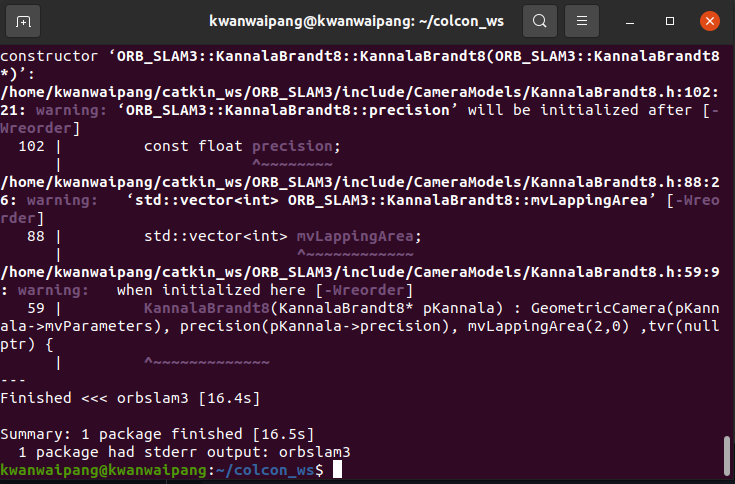

接下来进行安装

source /opt/ros/foxy/setup.bash
cd ~/colcon_ws
colcon build --symlink-install --packages-select orbslam3

# 注意要安装colcon包
sudo apt install python3-colcon-common-extensions

若有sophus找不到的问题，那么就到ORB-SLAM3的空间，然后安装sophus库

cd ~/{ORB_SLAM3_ROOT_DIR}/Thirdparty/Sophus/build
sudo make install

接下来记得source一下工作空间

source ~/colcon_ws/install/local_setup.bash

安装ros1_bridge

git clone -b foxy https://github.com/ros2/ros1_bridge

colcon build --symlink-install --packages-select ros1_bridge
# 注意编译的时候应该确保ros和ros2两个工作空间都source了
colcon build --symlink-install --packages-select ros1_bridge --cmake-force-configure

运行测试

同样运行单目的模型：

#Shell A:
source /opt/ros/noetic/setup.bash
roscore

#Shell B:
source /opt/ros/noetic/setup.bash
source /opt/ros/foxy/setup.bash
export ROS_MASTER_URI=http://localhost:11311
ros2 run ros1_bridge dynamic_bridge

#Shell C:
source /opt/ros/noetic/setup.bash
rosbag play ~/dataset/MH_01_easy.bag --pause /cam0/image_raw:=/camera/left /cam1/image_raw:=/camera/right /imu0:=/imu

#Shell D:
source /opt/ros/foxy/setup.bash
# ros2 run orbslam3 mono ~/catkin_ws/ORB_SLAM3/Vocabulary/ORBvoc.txt ~/colcon_ws/src/orbslam3_ros2/config/monocular/EuRoC.yaml BOOL_RECTIFY [BOOL_EQUALIZE]
ros2 run orbslam3 stereo-inertial ~/catkin_ws/ORB_SLAM3/Vocabulary/ORBvoc.txt ~/colcon_ws/src/orbslam3_ros2/config/stereo-inertial/EuRoC.yaml BOOL_RECTIFY [BOOL_EQUALIZE]

# ros2 run orbslam3 mono PATH_TO_VOCABULARY PATH_TO_YAML_CONFIG_FILE
# ./Examples/Monocular/mono_euroc ./Vocabulary/ORBvoc.txt ./Examples/Monocular/EuRoC.yaml ~/dataset/MH_01_easy ./Examples/Monocular/EuRoC_TimeStamps/MH01.txt

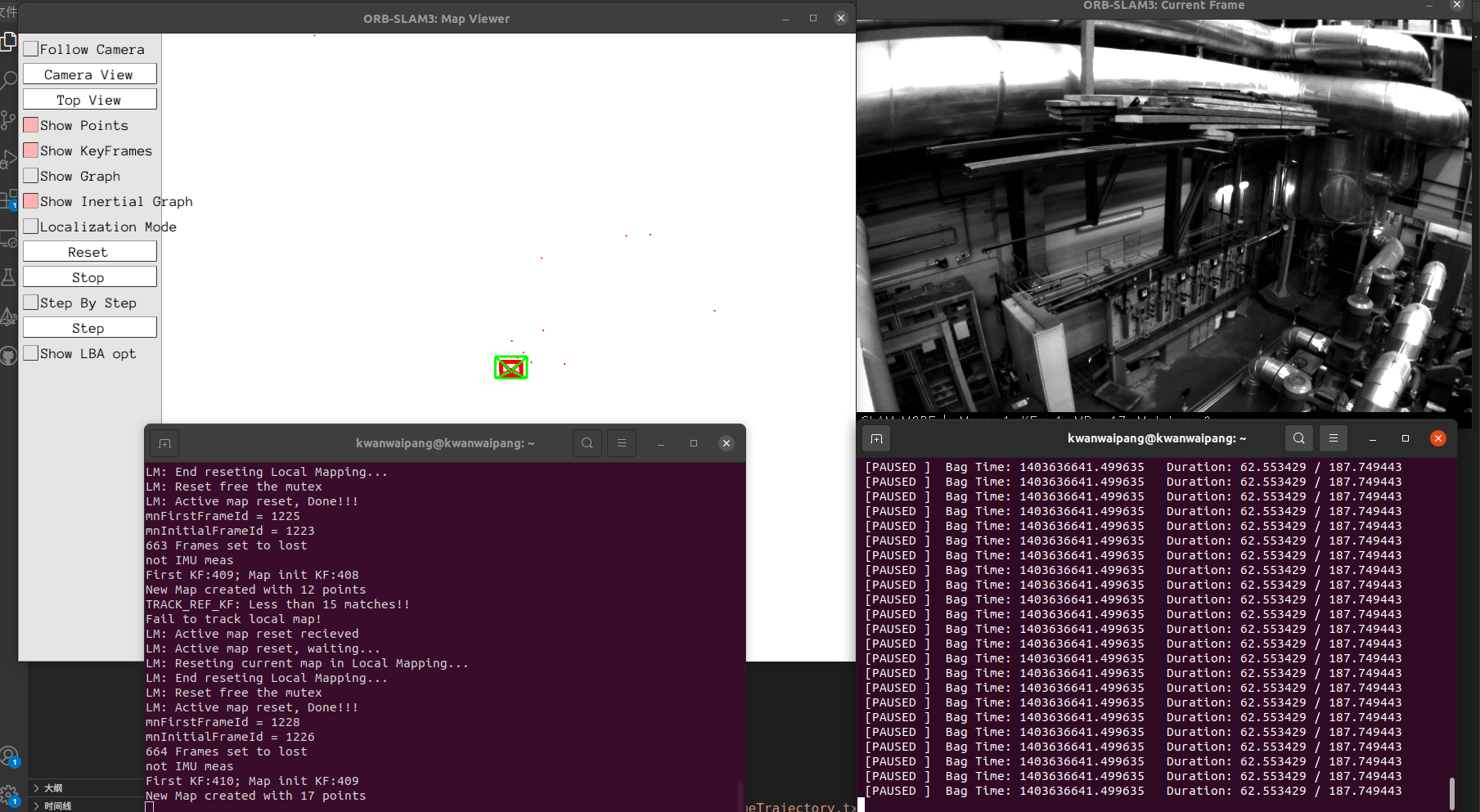

运行是正常的但似乎VI初始化没成功

  • 补充：应该是改yaml文件内参不对导致的，改为源ORB-SLAM3的内参就对了修改代码
  • 如果不想像上面那样运行那么多个终端可以写成sh文件
#! /bin/bash

# 开启roscore for ROS1
gnome-terminal --tab -e 'bash -c "source /opt/ros/noetic/setup.bash; roscore;exec bash"'
sleep 1s

# 开启roscore for ros1_bridge
gnome-terminal --tab -e 'bash -c "
source /opt/ros/noetic/setup.bash;
source /opt/ros/foxy/setup.bash;
export ROS_MASTER_URI=http://localhost:11311;
ros2 run ros1_bridge dynamic_bridge;
exec bash"'
sleep 1s


# 进行播包

gnome-terminal --tab -e 'bash -c "
source /opt/ros/noetic/setup.bash;
rosbag play ~/dataset/MH_01_easy.bag --pause /cam0/image_raw:=/camera/left /cam1/image_raw:=/camera/right /imu0:=/imu;
exec bash"'
sleep 1s


#开启orbslam3节点
gnome-terminal --tab -e 'bash -c "
source /opt/ros/foxy/setup.bash;
ros2 run orbslam3 stereo-inertial ~/catkin_ws/ORB_SLAM3/Vocabulary/ORBvoc.txt ~/catkin_ws/ORB_SLAM3/Examples/Stereo-Inertial/EuRoC.yaml BOOL_RECTIFY [BOOL_EQUALIZE];
exec bash"'
sleep 1s

设置.bashrc文件

alias orbbuild='cd ~/catkin_ws/ORB_SLAM3 && ./build.sh'
alias orbros='cd ~/colcon_ws && colcon build --symlink-install --packages-select orbslam3'
